Electric Horizontal Core-boring Machine (Dual Inverter) for Quarry
Product name : Electric Horizontal Core-boring Machine (Dual Inverter) for Quarry
Item : JNHC-80
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

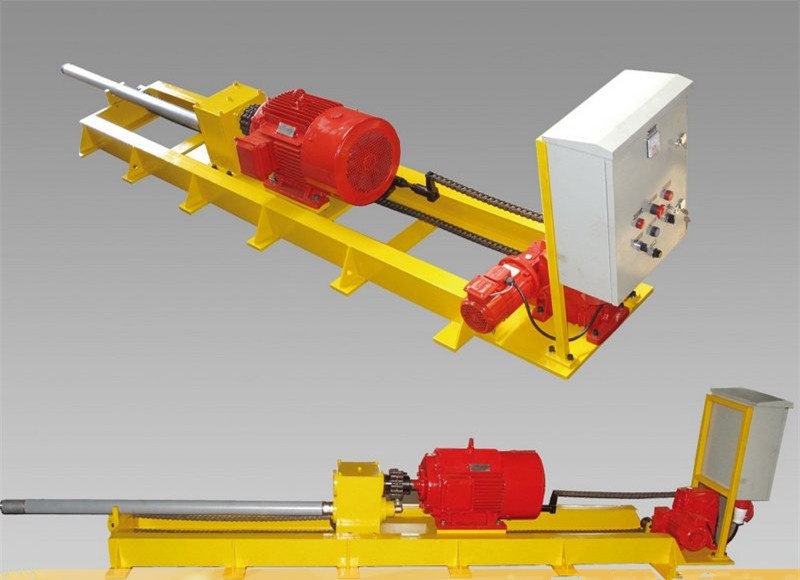

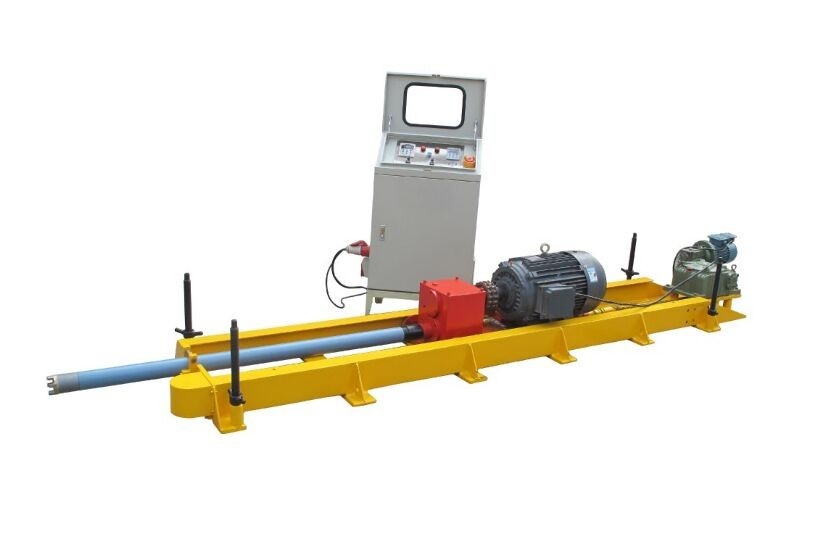

 JNHC-80 Electric Horizontal Core-boring Machine (Dual Inverter) for Quarry

Technical data

Model number

JNHC-80

Max. drilling hole diameter

Φ80mm

Max. drilling depth

40m

Drilling speed

3-12m/h

Min. water supply pressure

0.1 MPa

Motor power

15Kw

Single advance stroke

1.5m

Rotation device

Motor+reducer+inverter (dual inverter)

Advance device

Chain+reducer

Drilling direction

Horizontal

Control method

Moving automatic control

Main motor speed is adjustable

Total weight

730KG

Packing

Seaworthy packing, wrapped by waterproof plastic films and air bubbles (Regular) or  contained in a plywood case (Custom)



Application

This machine is mainly used for drilling horizontal hole and then passing diamond wire in stone quarries, highly efficient, durable, precise and easy to operate. The advance device is driven by motor and the control mode adopts electrical self-control principles, which ensures maximum drilling speed and less energy consumption. Meanwhile, it saves much labor cost.
