Manual Radial Arm Polisher
Product name : Manual Radial Arm Polisher
Item : JNMP-1800
 Enlarge Image                   Back
←[Previous Product]


Details:

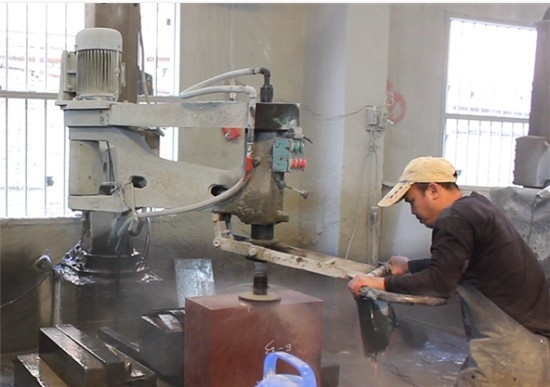

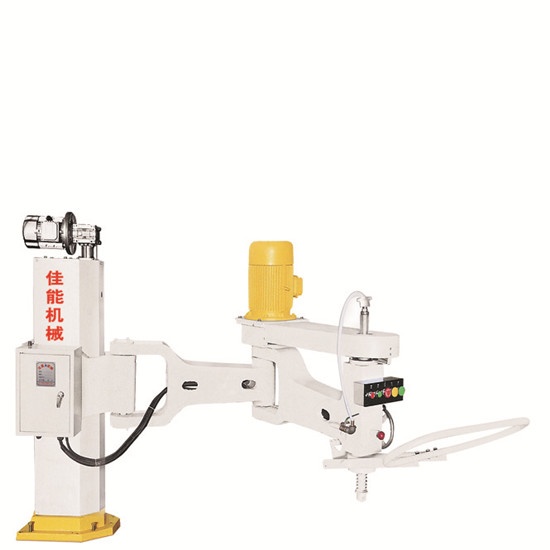

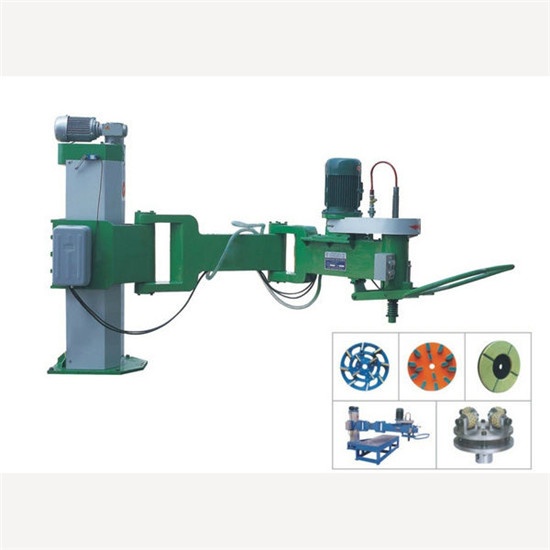

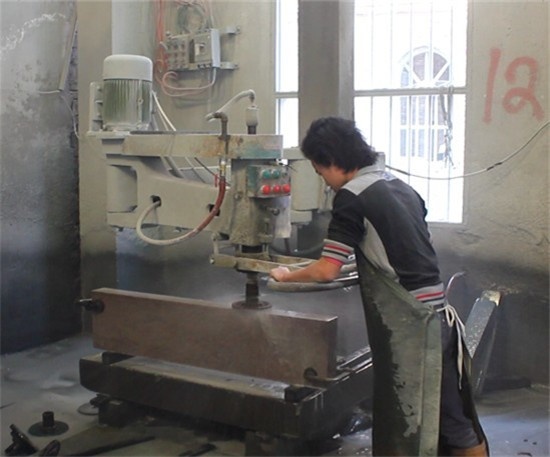

 JNMP-1800 Manual Radial Arm Polisher

Features:

1. Self-standing structure saves space;

2. Dual-speed motor: low and high speed, making polishing easier;

3. 180° radial arm;

4. Optional: pneumatic lifting design provides pneumatically adjustable pressure;

5. Mainly suitable for stone polishing and bush hammering;

6. More sizes are available upon request.
Technical data

Model

JNMP-1800

Dimension (L*W*H)

3500*650*1700mm

Arm length (turning radius)

1800mm

Vertical lifting stroke

800mm

Grinding wheel diamter

220mm

Operating voltage/frequency

380V/3PH/50Hz

Main motor power

5.5 Kw (Dual speed motor: high/low)

Total weight

1000Kgs

Water consumption

3m³/h

Packing

Plywood case
