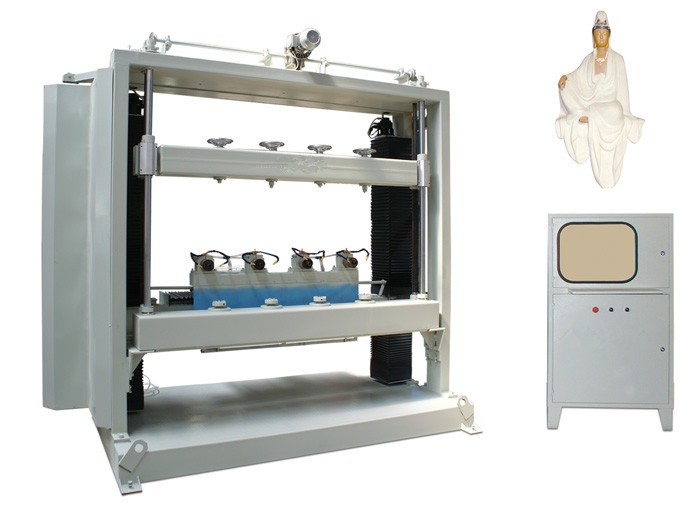

JNEM-4V Multihead CNC 3D Vertical Engraving Machine
Technical data
Model number
JNEM-4V
Operation mode
Servo driving system
Dimension (L*W*H)
3800*1600*2800mm
Engraving (Workpiece) size
Φ400mm*1200mm*600mm*4pcs
Main motor power (water-cooling motor)
2.2Kw*4
Servo motor
Yaskawa (Japan imported)
Spindle
Water-cooling spindle
Spindle rotating speed
8000-24000rpm/min
Operating voltage
380V or 220V/50Hz/3Ph
Hourly water consumption
3m³
Weight
2500Kgs
Packing
Seaworthy packing, wrapped by waterproof plastic films and air bubbles (Regular) or contained in a plywood case (Custom)
Applications: This multifunctional machine is used to engrave statues, figures, artifacts, pillars, reliefs in marble, granite, limestone, sandstone, basalt, onyx, wood, etc. It can be customized according to customer request.
