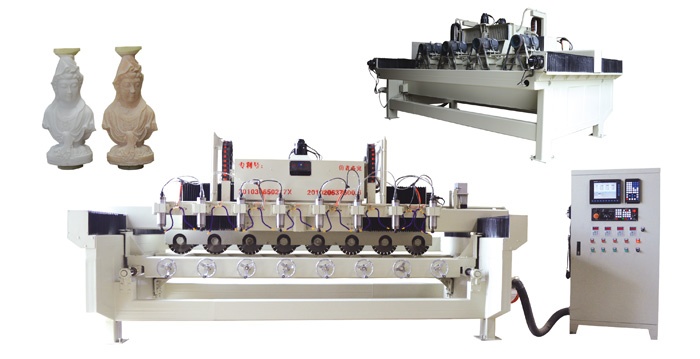

JNEM-8B Multihead CNC 3D Stone & Wood Engraving Machine Technical data
Model number
JNEM-8B
Operation mode
Servo driving system
Dimension (L*W*H)
4200*2400*1600mm
Engraving (Workpiece) size
φ320mm*850mm*8pcs φ600mm*850mm*4pcs
Main motor power (water-cooling motor)
2.2Kw*8
Servo motor
Yaskawa (Japan imported)
Spindle
Water-cooling spindle
Spindle rotating speed
8000-24000rpm/min
Operating voltage
380V/50Hz/3Ph
Hourly water consumption
2m³
Weight
3000Kgs
Packing
Seaworthy packing, wrapped by waterproof plastic films and air bubbles (Regular) or contained in a plywood case (Custom)
Applications: This multifunctional machine is used to engrave statues, dragon pillars, figures, furniture and artifacts in marble, granite, limestone, sandstone, basalt, onyx, wood, etc. It can be customized according to customer request.
