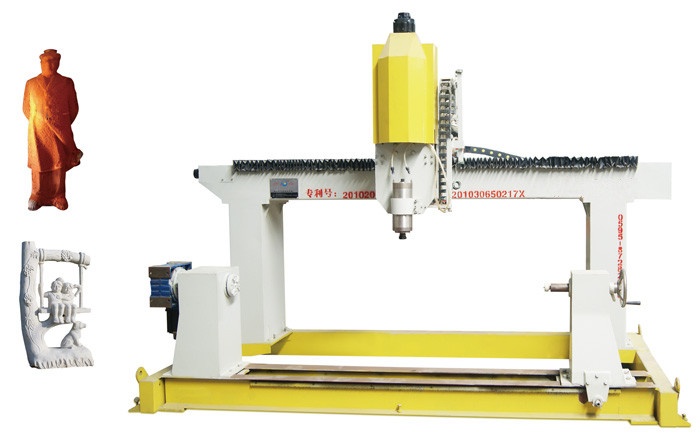

JNEM-1M Single Head CNC 3D Large Statue Engraving Machine
Technical data
|
Model number
|
JNEM-1M
|
|
Operation mode
|
Servo driving system
|
|
Dimension (L*W*H)
|
2300*1300*1800mm
|
|
Engraving (Workpiece) size
|
3000*1200mm*1pc/2000*1200mm*1pc
|
|
Main motor power (water-cooling motor)
|
5.5Kw
|
|
Servo motor
|
Yaskawa (Japan imported)
|
|
Spindle
|
Water-cooling spindle
|
|
Max. worktable load
|
1000Kgs
|
|
Spindle rotating speed
|
8000-24000rpm/min
|
|
Operating voltage
|
380V or 220V/50Hz/3Ph
|
|
Hourly water consumption
|
3m³
|
|
Weight
|
2000Kgs
|
|
Packing
|
Seaworthy packing, wrapped by waterproof plastic films and air bubbles (Regular) or contained in a plywood case (Custom)
|
Applications:
This multifunctional machine is used to engrave large statues, figures, artifacts, sculpture, pillars, furniture in marble, granite, limestone, sandstone, basalt, onyx, wood, etc.
It can be customized according to customer request.
