Quanzhou Jianeng Machinery Co., Ltd.

Technical data

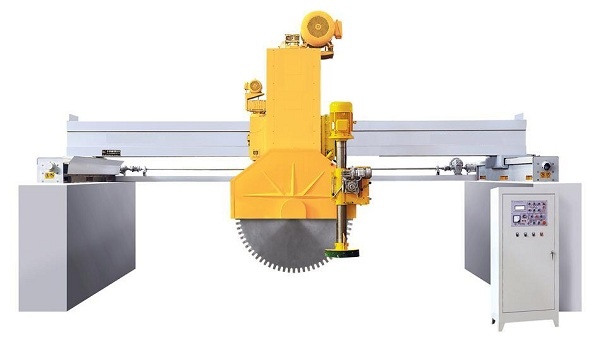

Model	JNHV-1600
Horizontal blade diameter	400-600mm
Max. diameter of vertical blade	1600mm
Max. cutting length	3000-3500mm
Max. cutting width	1800mm
Max. cutting depth	1400mm
Max. output height	630mm
Motor power of horizontal blade	15Kw
Motor power of crossing movement	22Kw
Main motor power	75-90Kw
Weight	9000Kgs



Features:

1. Mainly used for cutting marble blocks into slabs;
2. Bridge-type structure;
3. Cross beam and side beam are oil immersed;
4. Automatic blade movement;
5. Four-post hydraulic lifting system ensures stable and fast lifting;
6. Horizontal & vertical cutting;
7. Production capacity: 100m²/10 hours.
