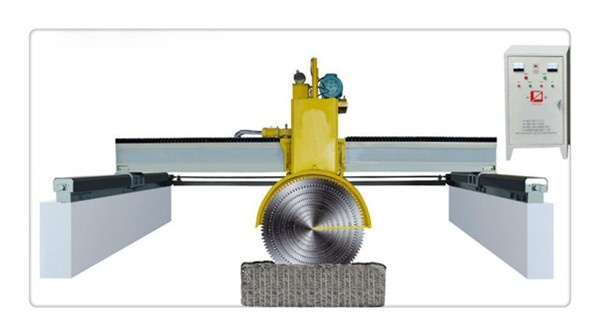

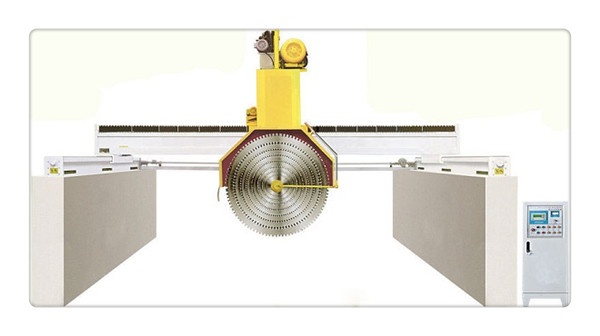

Automatic Bridge Stone Block Cutting Machine
Product name : Automatic Bridge Stone Block Cutting Machine
Item : JNBC-2200
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
JNBC-2200  Automatic Bridge Stone Block Cutting Machine

Technical data

Model

JNBC-2200

JNBC-2500

JNBC-3000

Dimension (L*W*H)

7300*3800
*5500mm

7300*3800
*5500mm

7300*3800
*6100mm

Number of blades

8pcs

5pcs

1pc

Recommended
blade combination

 Φ2200mm
 Φ2000mm

  Φ1800mm
 Φ1600mm

 Φ1400mm
 Φ1200mm

  Φ1000mm
Φ800mm

 Φ2500mm
Φ2000mm

 Φ1600mm
Φ1200mm

         Φ800mm

Φ3000
mm

Recommended blade thickness

6.5mm

7.2mm

8mm

Max. cutting size (L*W*H)

3200*1800
*950mm

3000*1800
*1100mm

2500*1800*
1350mm

Main motor power

45Kw

45Kw

37Kw

Water consumption

6m³/h

6m³/h

6m³/h

Weight

10000KG

11000KG

12000KG

Packing

Seaworthy packing, wrapped by waterproof plastic films and air bubbles



Features:

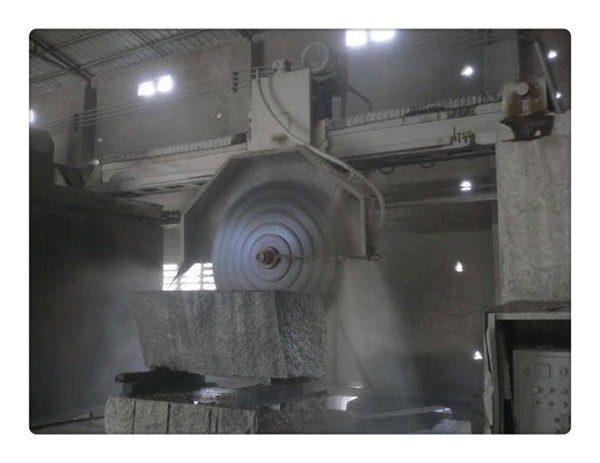

1. Mainly used for cutting granite stone blocks into slabs;

2. Bridge structure and logical control system ensure a stable performance;

3. Blade combinations in different diameters work simultaneously;

4. Complete with hydraulic lifting system (optional);

5. Complete with oil-immersed guide rail for crossbeam and side beam;

6. The machine moves along the crossbeam while cutting stone blocks;

7. PLC control system makes the machine easy to operate;

8. Blade combinations are flexibly decided according to specific customer need.
