Bridge Middle Stone Cutting Machine
Product name : Bridge Middle Stone Cutting Machine
Item : JNBM-900
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

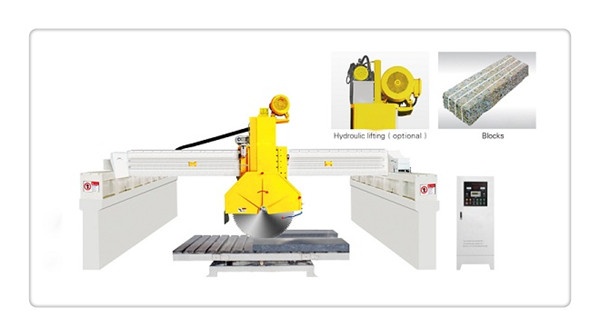

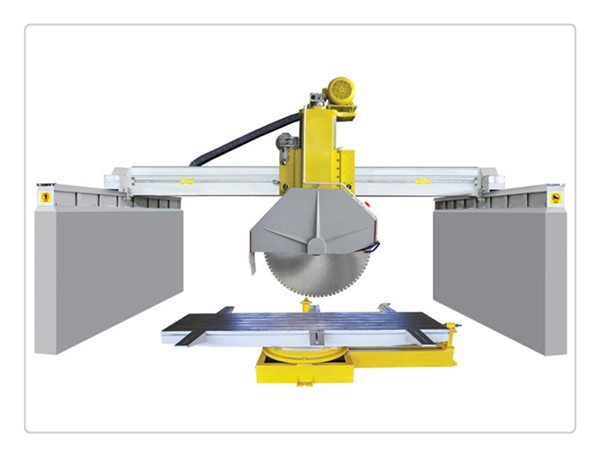

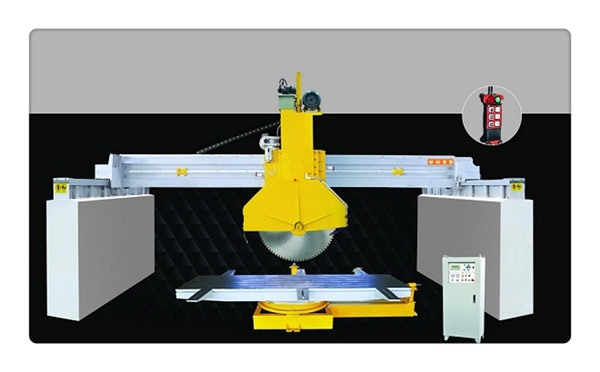

JNBM-900 Bridge Middle Stone Cutting Machine

Technical data

Model

JNBM-900

JNBM-1200

Overall dimension (L*W*H)

6000*5000*4200mm

6000*5000*4200mm

Max. blade diameter

600-900mm

1000-1200mm

Main motor power

18.5kw

18.5kw

Vertical stroke

500mm

500mm

Table size (L*W)

3000*1600mm

3000*1600mm

Table rotation degree

0-360°

0-360°

Max. cutting size (L*W*H)

3000*1600*300mm

3000*1600*450mm

Water consumption

4m³/h

4m³/h

Weight

6000Kgs

6500Kgs

Packing

Seaworthy packing, wrapped by waterproof plastic films and air bubbles


Features:
1. Mainly used for cutting slabs, curbstones, tombstones or monuments;
2. Complete with oil-immersed guide rail for crossbeam and side beam;
3. Dust-proof slide track ensures precise guide movement and long service life;
4. The cutting head can move flexibly in three directions (up/down, left/right, front/back);
5. The blade input speed can be flexibly adjusted by variable frequency adjustable speed system;
6. Complete with an infrared ray cutter aligner for precise cutting;
7. Hydraulic lifting system or screw-rod lifting system (optional);
8. PLC control system.
