Sink Hole Cutting & Profiling Machine
Product name : Sink Hole Cutting & Profiling Machine
Item : JNSC-100
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

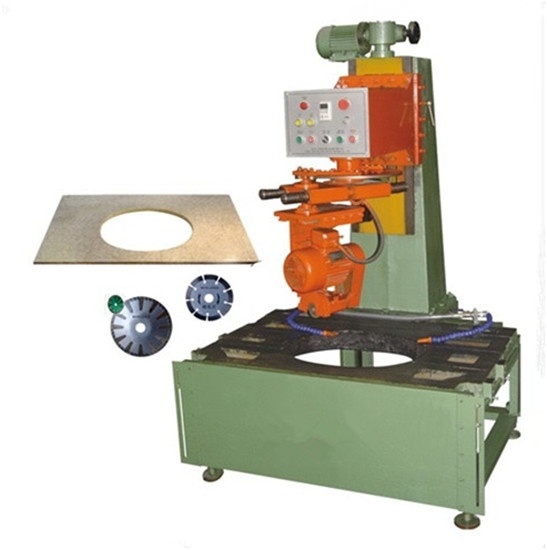

 JNSC-100  Sink Hole Cutting Machine

Technical data

Item

JNSC-100  Sink Hole Cutter

Dimension (L*W*H)

1230*1200*1830mm

Motor power

2.02Kw

Blade rotating speed

6400 rpm/min

Spindle rotating speed

0.7-1.4 rpm/min

Blade angle

25°

Blade center-worktable distance

0-340mm

Blade diameter

105-125mm*20mm bore

Inner diameter of model

100mm

Max. hole diameter

≤580mm

Min. hole diameter

≥290mm

Worktable size (L*W)

1200*780mm


JNSP-4  Sink Hole Curve Profiling Machine

Technical data

Item

JNSP-4 Sink Hole Curve Profiling Machine

Dimension (L*W*H)

1800*1500*1500mm

Motor power

2.2Kw

Arm range

2000*1500mm

Grinding head rotating speed

3200 rpm/min

Drilling diameter

6-100mm

Inner Curve

Any

External curve

Any

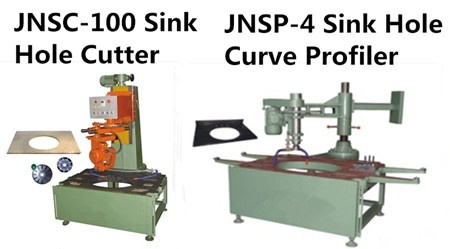

JNSC-100 and JNSP-4 are a great match for countertop processing, featuring high efficiency and excellent quality.

Cutting with concave blade, JNSC-100 can work faster than similar ones cutting with finger bit. It is specially designed for cutting oval or round holes; the cutting head can move up and down automatically and rotate 360 degrees around the "shape model"; the cutting depth can be adjusted according to stone hardness.

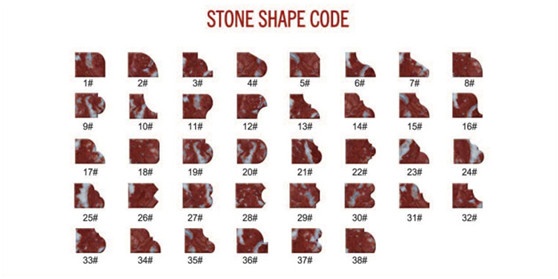

Following the cutting, JNSP-4 takes care of the remaining work: profiling, grinding and polishing, and it can process (profiling + grinding + polishing) internal or external curve edges in any shape (see customizable stone shape code 1#-38#).
