Stone Bridge Cutting Machine
Product name : Stone Bridge Cutting Machine
Item : JNBC-450
 Enlarge Image                   Back
←[Previous Product]


Details:

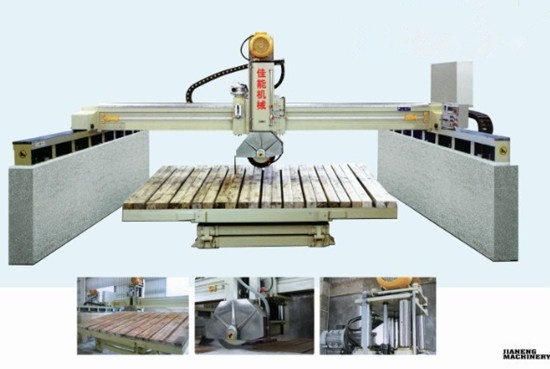

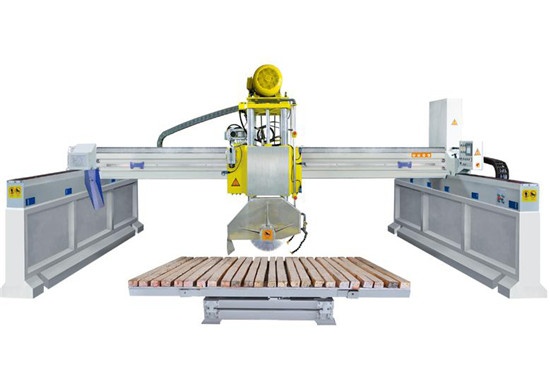

JNBC-450 Stone Bridge Cutting Machine

Features:

1. It is equipped with oil-immersed guide rail for crossbeam and side beam;

2. Hydraulic lifting system;

3. PLC terminal controlling system for convenience of setting parameters through LCD touch screen.
Each slab is cut automatically individually throughout the process, with blade input speed flexibly adjusted
by variable frequency adjustable speed system according to slab characteristics;

4. An infrared ray cutter aligner is installed;

5. Cross Beam: Double built-in groove to make precise cutting;

Technical data

Model

JNBC-450

Dimension (L*W*H)

6000*5000*2800mm

Blade diameter

450mm

Number of blades

1pc

Max. cutting length

3200mm

Max. cutting width

2000mm

Max. cutting depth

110mm

Table size

3200*2000mm

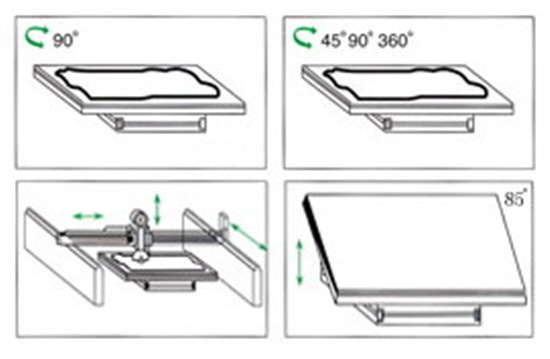

Table tilting angle

0-85°

Table rotating angle

0-90°

Operating voltage/frequency

380V 50Hz 3PH

Main motor power

15Kw

Total weight

5300Kgs

Water consumption

5m³/h

Loading

1*20ft
