CNC Wire Saw FOR Granite Headstone Monument
Product name : CNC Wire Saw FOR Granite Headstone Monument
Item : JNWS2020
 Enlarge Image                   Back
             [Next Product]→


Details:

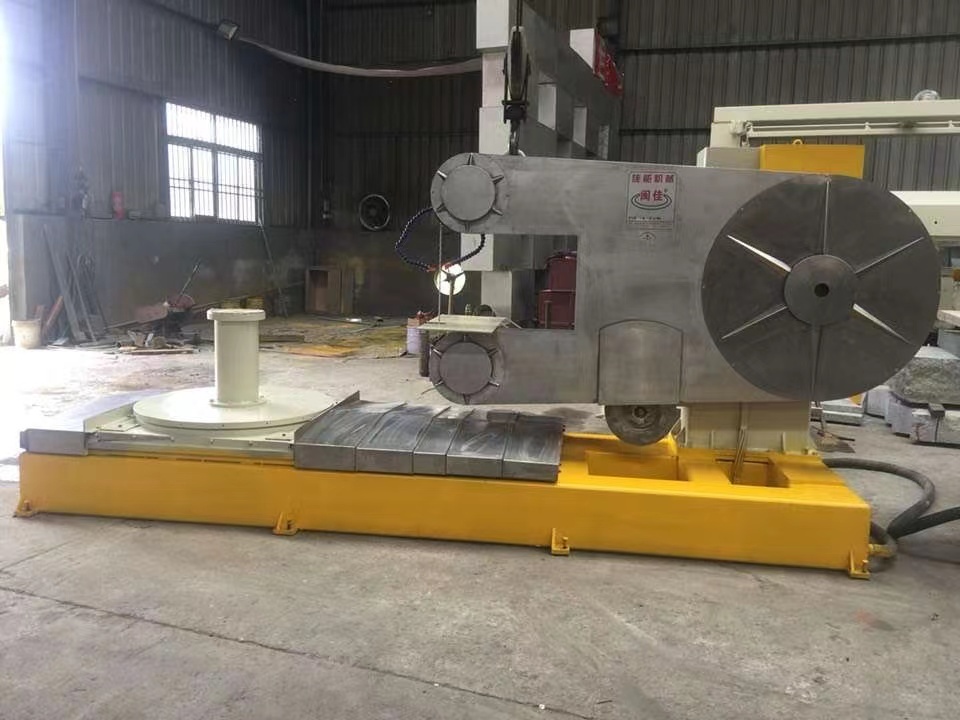

 JNWS2020 CNC Wire Saw FOR Granite Headstone Monument

It mainly works for processing internal & external shapes of monuments and large slabs.

Features:

1. Two-axis servo NC machine;

2. Wheels and X/C axis work effectively together to make one-time shaping;

3.  Balanced and well-calibrated wheel movement makes wire rope run stable, efficient and durable;

4. X axis is equipped with high-precision liner guide to ensure smooth and fast movement;

5. Y axis is equipped with high-precision round track to ensure stable operation;

6. X/C axis backlash control system receives real-time feedback data to conduct automatic adjustment and guarantee precise processing;

7. Workpieces can be easily loaded and unloaded;

8. Broad processing range, low noises and dust-free cutting.

Technical data

Model

JNWS2020

Dimension (L*W*H)

5000*1250*2300mm

Main motor

15Kw

Total power

18Kw

Max. processing size (L*W*H)

2000*2000*500mm

Wire tightening stress

50-350Kgs

Hydraulic pressure

0.2-0.4Mpa

Water consumption

4L/min

System air pressure

0.5-0.7Mpa

Wheel tensioning air pressure

0.35-0.5Mpa

Air consumption

50-100L/min

Processing efficiency

0.5 m2/h

Weight

2500Kgs
