Column Base Curved Line Cutting Machine
Product name : Column Base Curved Line Cutting Machine
Item : JNCL-2500
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

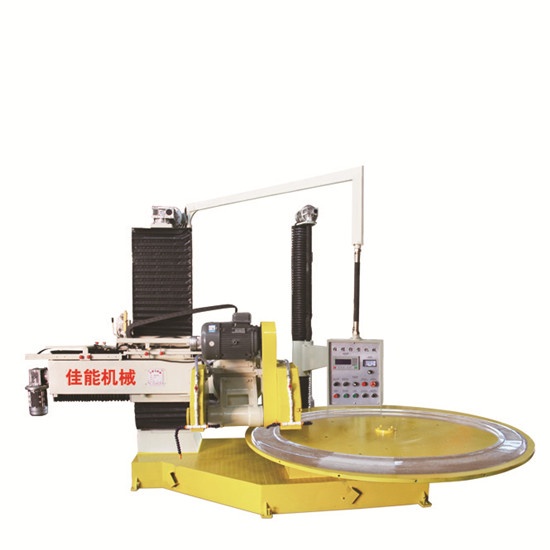

 JNCL-2500 Column Base/Curved Line Cutting Machine

Features:

1. It comes with optical fiber sensing system for precise profiling;

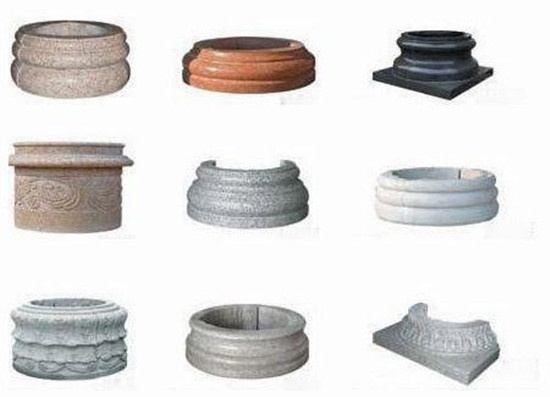

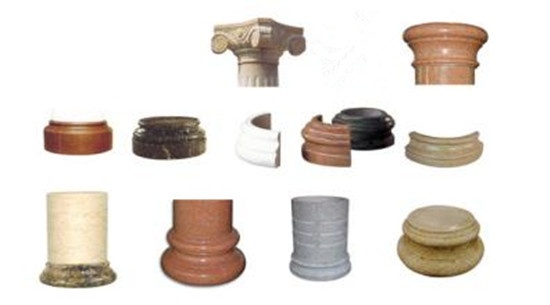

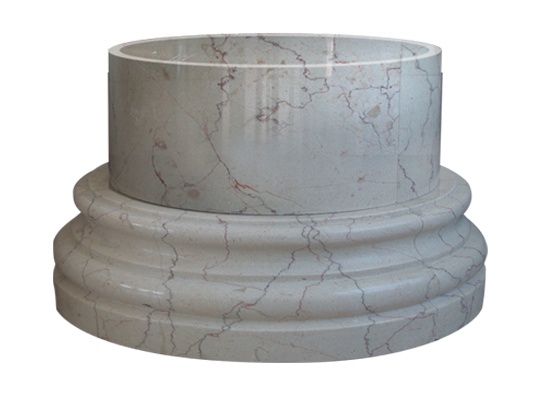

2. Suitable for cutting column bases/caps, curved lines, flowerpots, vases, columns, balusters, stools, etc.

3. Cutting head equipped with two blades can be turned 90° for different purposes.

Technical data

Model

JNCL-2500

Dimension (L*W*H)

4600*3200*3000mm

Max. blade diameter

600mm

Number of blades

1pc

Worktable diameter

2500mm

Vertical stroke

1200mm

Max. cutting height

1100mm

Max. cutting diameter

2000mm

Max. cutting diameter for column base & cap

1800mm

Max. cutting diameter for curved lines

2500mm

Operating voltage/frequency

380V/3PH/50Hz

Total power

17Kw

Total weight

5800Kgs

Water consumption

3m³/h

Packing

Seaworthy packing, wrapped by waterproof plastic films and air bubbles
