Multihead Column Profiling/Copying Machine (Eight Heads)
Product name : Multihead Column Profiling/Copying Machine (Eight Heads)
Item : JNPM-300
 Enlarge Image                   Back
←[Previous Product]


Details:

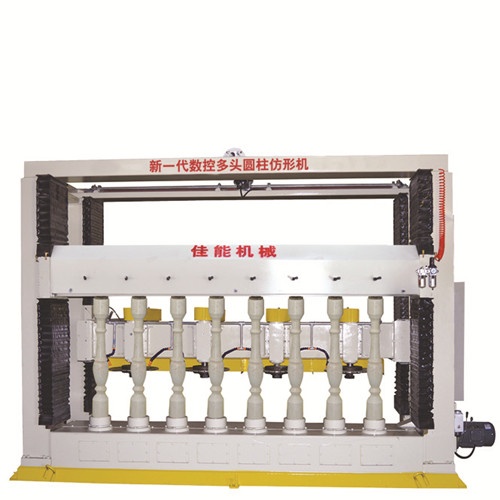

JNPM-300/600 Multihead Column Profiling/Copying Machine (Eight Heads)

Features:

1. Optical fiber sensing system
 for easy and precise operation;

2. Different kinds of wood templates/ models are available;

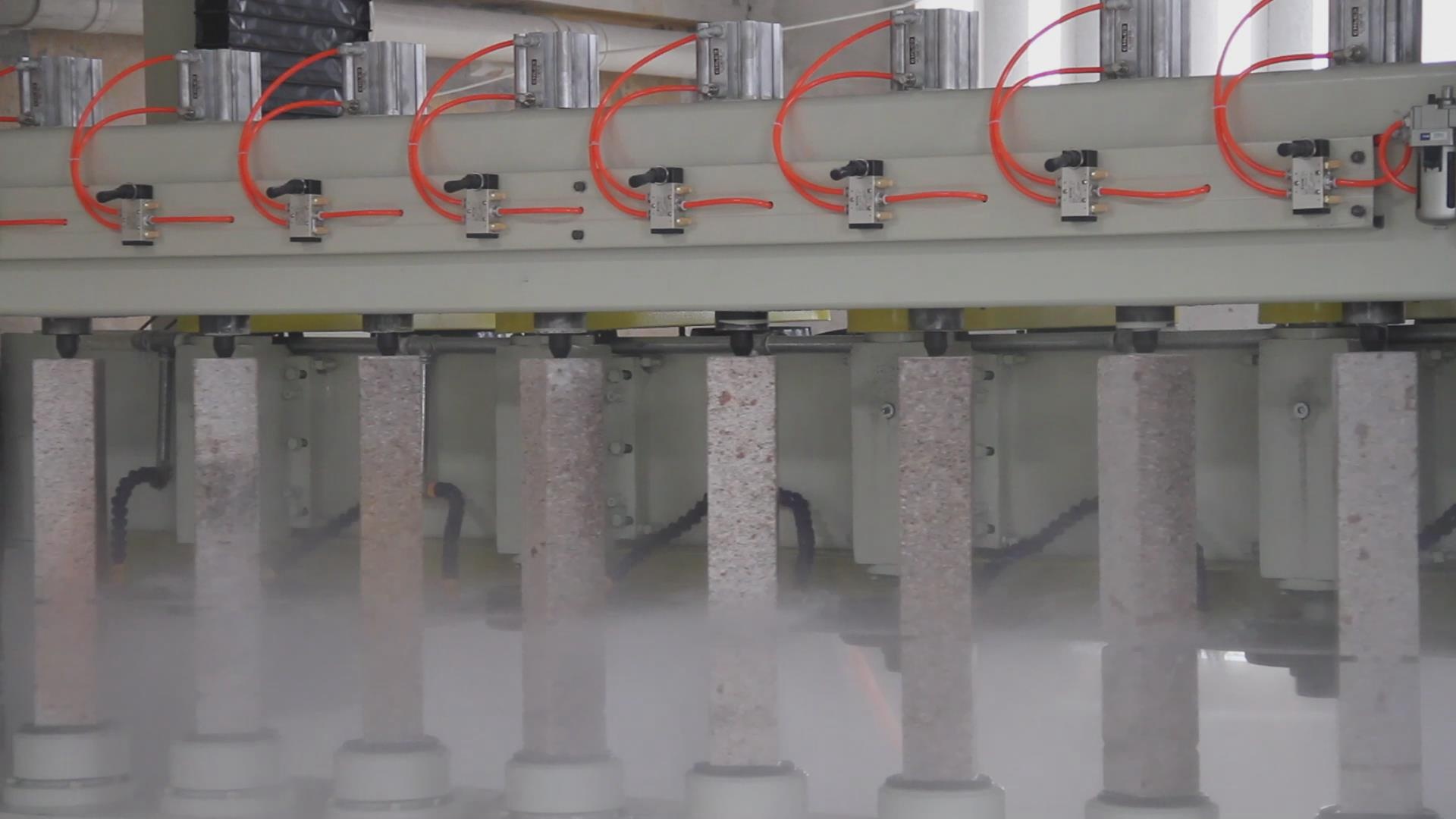

3. Pneumatic fastening system makes it easy to load/unload workpieces and avoid vibrations ;

4. Cut eight workpieces (at most) one time;

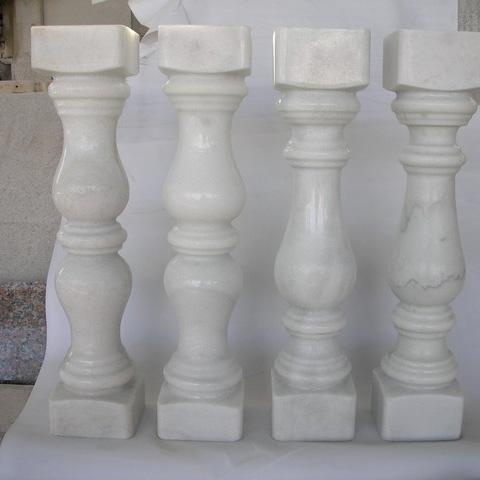

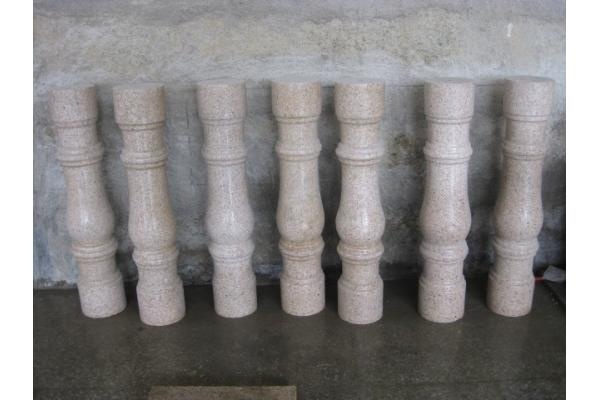

5. Capable of making balusters, balls, columns, column bases/caps, vases, planters, pots, stools in  different materials (wood, marble, granite, basalt, etc.);

6. Labor-saving and efficient;

7. Recyclable water use.

Technical data

Model

JNPM-300

Operation mode

Optical fiber sensing system

Dimension (L*W*H)

3480*1380*2660mm

Cutting height

1250mm

Max. cutting diameter

300/600mm

Max. number of workpieces processed

8 pcs

Number of blades

4pcs

Blade diameter

400-600mm

Operating voltage/frequency

380V/3PH/50Hz

Total power

35Kw

Total weight

5000Kgs

Production capacity

8pcs/40-50minutes

Water consumption

5m³/h

Packing

Seaworthy packing, wrapped by waterproof plastic films and air bubbles
