Multiblade Square Balustrade Profiling Machine
Product name : Multiblade Square Balustrade Profiling Machine
Item : JNBP-3500
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

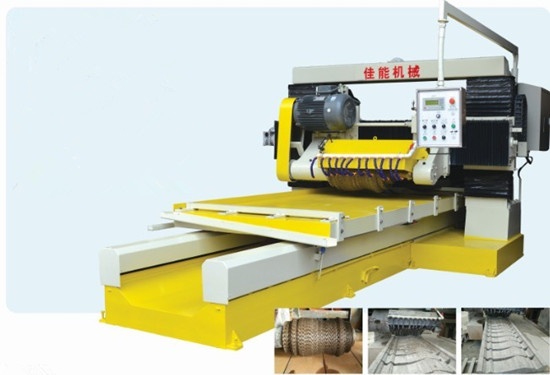

 JNBP-3500 Multiblade Square Balustrade Profiling Machine

Features:

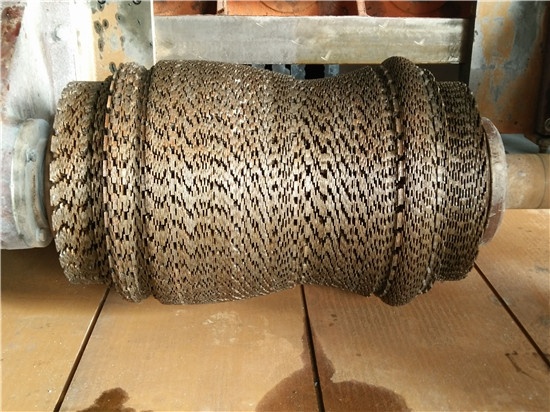

1. Multiblade combination for one-time shaping;

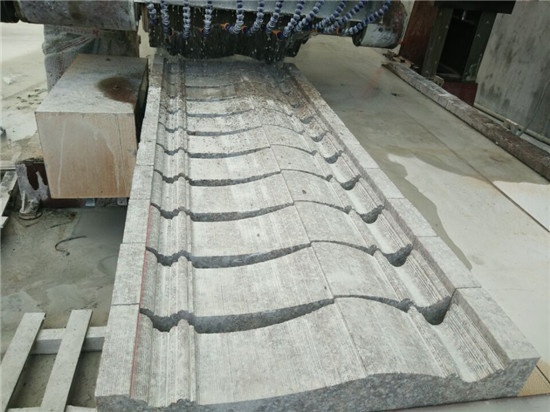

2. Processed square balustrade is in uniform shape;

3. Suitable for mass production of square balustrades and straight lines, etc.

Technical data

Model

JNBP-3500

Dimension (L*W*H)

6000*2400*2200mm

Blade diameter

350-500mm

Max. number of blades

580pcs

Max. cutting length

3500mm

Max. cutting width

1000mm

Max. cutting height

300mm

Operating voltage/frequency

380V/3PH/50Hz

Main motor power

30Kw

Total weight

6000Kgs

Hourly production capacity

15-20pcs(15cm*15cm)

Hourly water consumption

4m³/h

Packing

Seaworthy packing, wrapped by waterproof plastic films and air bubbles
