Two Head Pillar Machine (Two Blades)
Product name : Two Head Pillar Machine (Two Blades)
Item : JNPM-500
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

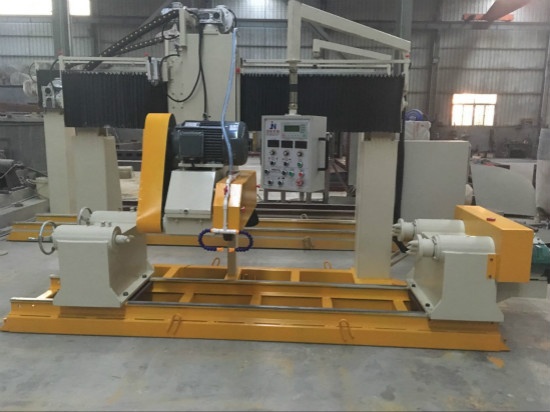

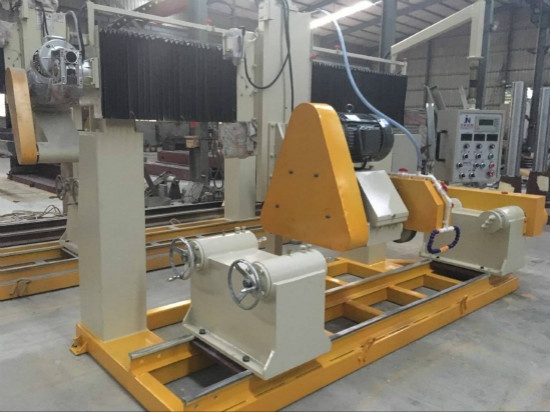

 JNPM-500 Two Head Pillar Profiling Machine (Two Blades)
Features:
1.Optic fiber sensing system for easy and precise profiling;
2.Different kinds of copying models/templates are available;
3.Mechanical fastening fixes workpieces;
4.Cut 2 pieces (at most) at the same time;
5.Capable of making columns, balusters, balls, flowerpots/vases/planters, stools, pots, column bases/caps, etc;
6.Labor-saving (1 worker);
7.Recyclable water use;
8.More sizes are available upon request.
Technical data

Model

JNPM-500

Operation mode

Optic fiber sensing system

Dimension (L*W*H)

5000*1300*2500mm

Cutting length

3500mm

Cutting diameter

500mm (two pcs)

1000mm (single pc)

Number of blades

2pcs

Max. number of workpieces processed

2pcs

Blade diameter

350-600mm

Operating voltage/frequency

380V/50Hz/3PH

Main motor power

18.5Kw

Total weight

3500Kgs

Water consumption

5m3/h

Packing

Seaworthy packing, wrapped by waterproof plastic films and air bubbles
