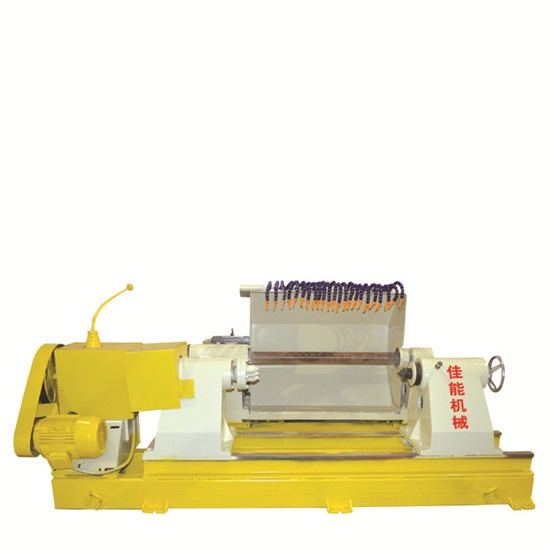

Horizontal Multiblade Stone Ball Profiling Machine
Product name : Horizontal Multiblade Stone Ball Profiling Machine
Item : JNSB-1100
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

 JNSB-1100 Horizontal Multiblade Stone Ball Profiling Machine

Features:

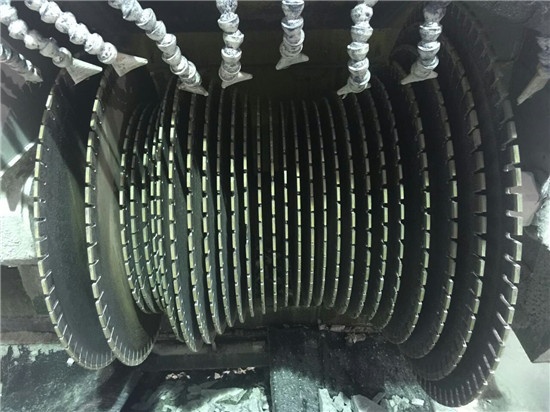

1. Multiblade combination for one-time shaping;

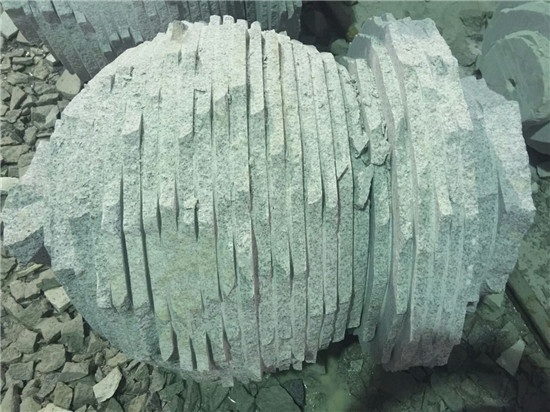

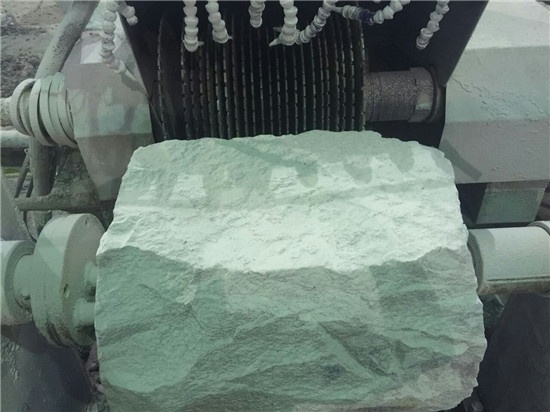

2. Rough cutting of workpieces;

3. Fine cutting with column profiling machine to produce final stone balls;

4. Suitable for mass production of round stone balls, cylindrical shapes, etc.

Technical data

Model

JNSB-1100

Dimension (L*W*H)

3000*2200*1000mm

Blade diameter

300-600mm

Number of blades

28pcs

Max. cutting length

1000mm

Cutting diameter

300-800mm

Operating voltage/frequency

380V/3PH/50Hz

Total power

22Kw

Total weight

3000Kgs

Production capacity

6pcs/h

Water consumption

5m³/h

Packing

Seaworthy packing, wrapped by waterproof plastic films and air bubbles
