Column Base Profiling Machine
Product name : Column Base Profiling Machine
Item : JNCB-4500
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

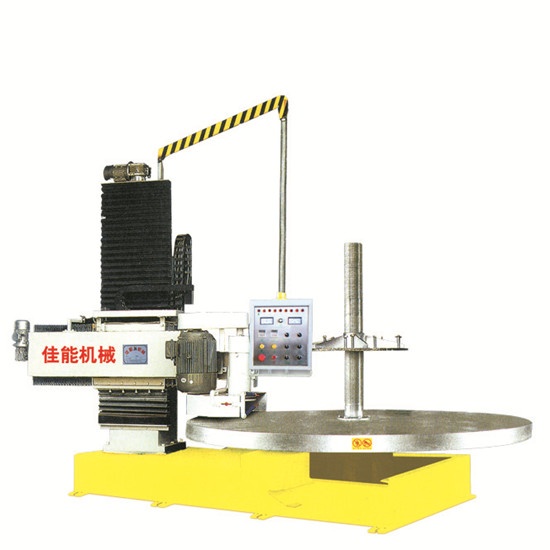

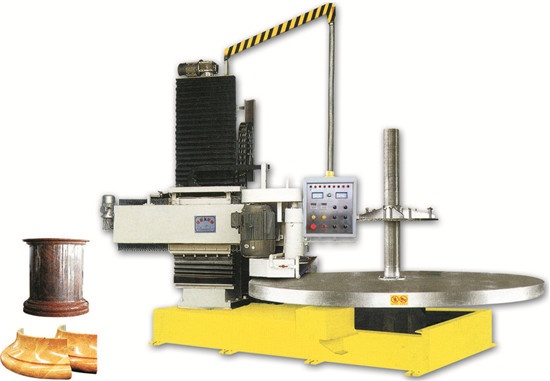

 JNCB-4500 Column Base Profiling Machine

Features:

1. It comes with optical fiber sensing system for precise profiling;

2. Suitable for cutting column bases/caps, curved lines, flowerpots, vases, columns, balusters, stools, etc.

3. Cutting head equipped with two blades can be turned 90° for different purposes;

4. Hollow column base can also be processed;

5. More sizes are available upon request.

Technical data

Model

JNCB-4500

Dimension (L*W*H)

4000*2200*3100mm

Blade diameter

600mm

Number of blades

1pc

Number of polishing heads

1pc

Max. cutting diameter

4500mm

Max. cutting height

2000mm

Vertical stroke

2200mm

Table diameter

2000mm

Operating voltage/frequency

380V/3PH/50Hz

Main motor power

15Kw

Total weight

6500Kgs

Water consumption

3m³/h

Packing

Seaworthy packing, wrapped by waterproof plastic films and air bubbles
