Four Head Balustrade Machine
Product name : Four Head Balustrade Machine
Item : JNPM-320
 Enlarge Image                   Back
             [Next Product]→


Details:

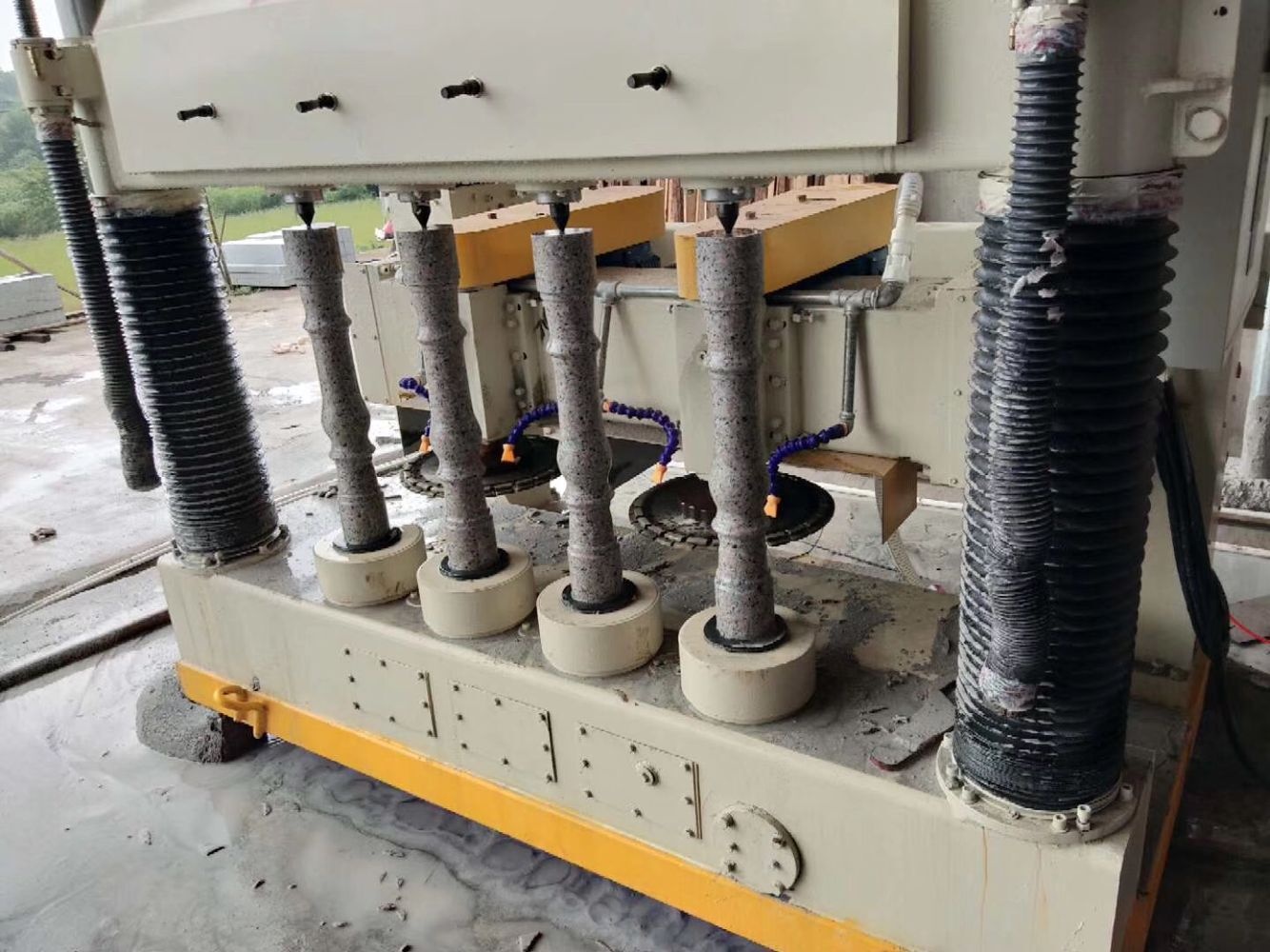

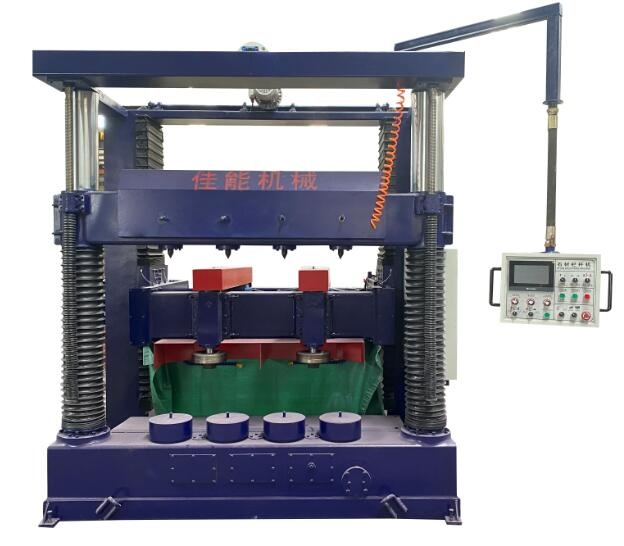

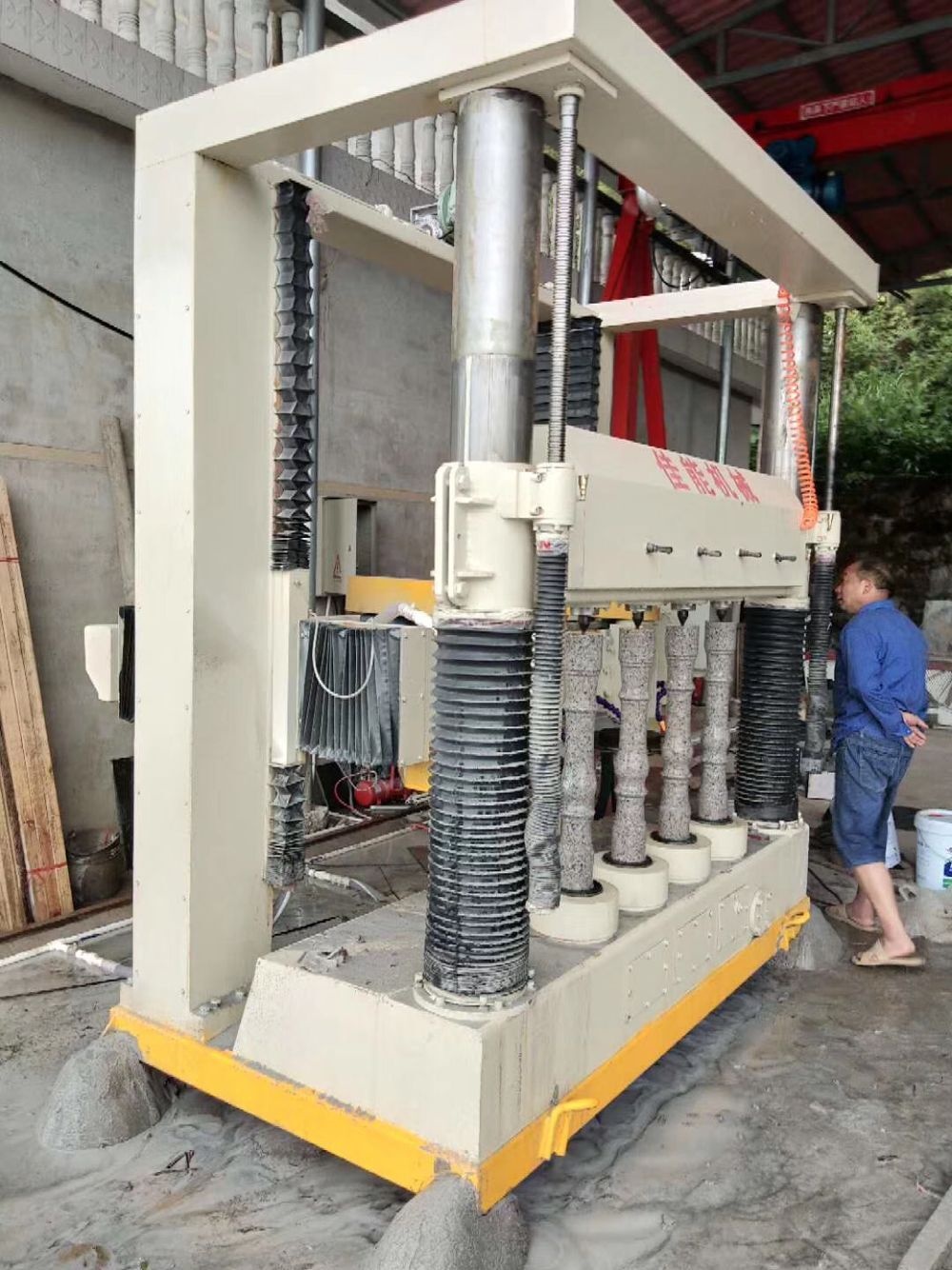

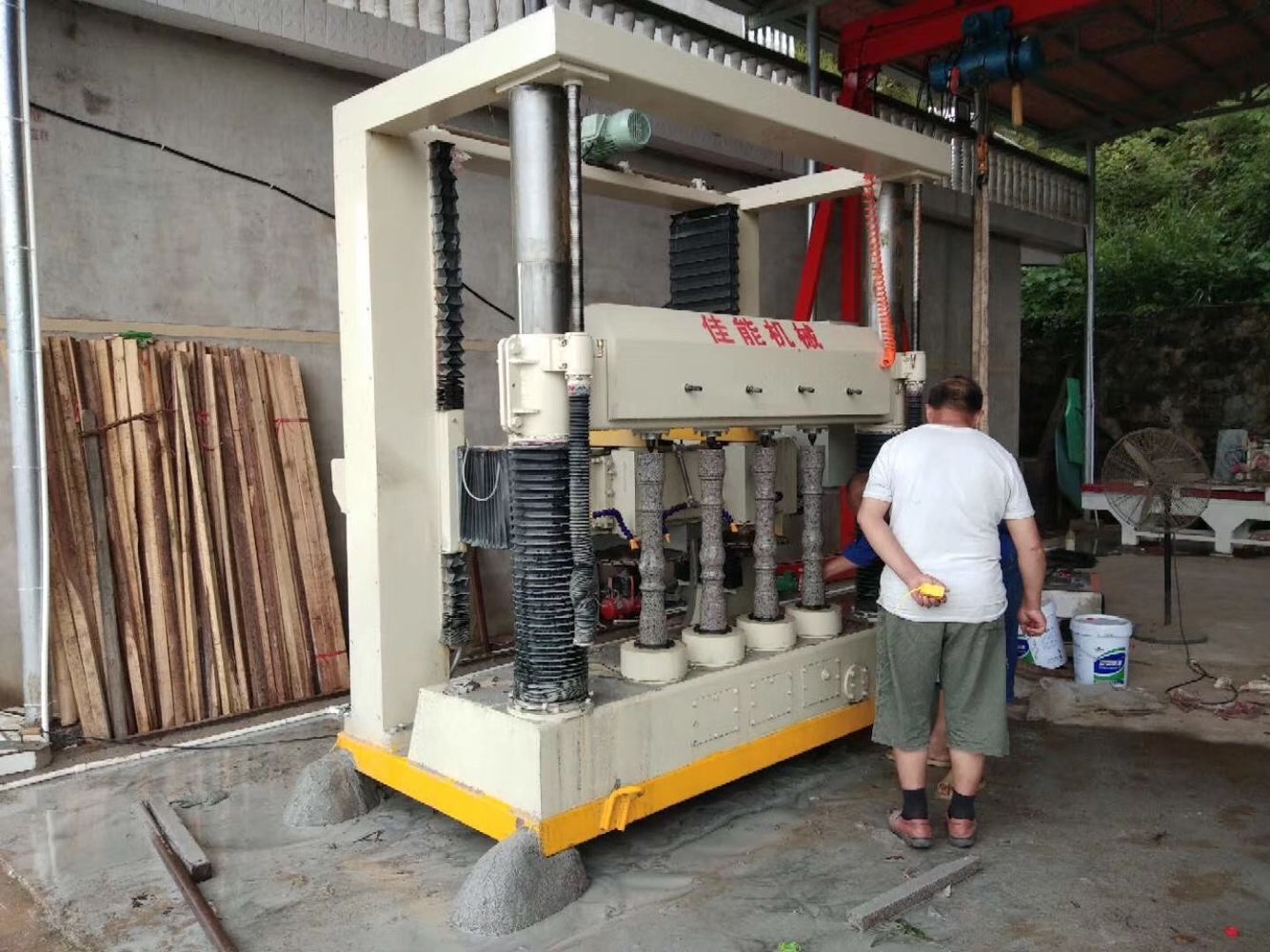

 JNPM-320 Four Head Balustrade Machine
Features:
1.Optical fiber sensing system for easy and precise profiling;
2.Different kinds of copying models/templates are available;
3.Pneumatic fastening system is used to fix workpieces, saving time to load/unload workpieces, stable and safe;
4.Capable of cutting four workpieces (at most) at the same time;
5.Capable of making turned stone baluster and ball, flowerpot, column base, column cap in different shapes and different materials (marble, granite, basalt, sandstone, travertine, onyx, etc.);
6. Labor-saving (1-2 workers);
7. Recyclable water use.

Technical data

Model

JNPM-320

Operation mode

Optical fiber sensing system(PLC  system)

Dimension (L*W*H)

3000*1600*2660mm

Max. cutting height

1200mm

Max. number of workpieces processed

φ300mm*4pcs

Number of blades

2pcs/φ350-500mm

Operating  voltage/frequency

380V 50Hz 3PH

Total power

20Kw

Total weight

3600Kgs

Water consumption

3m3/h

Packing

Seaworthy packing, wrapped by waterproof plastic films and air bubbles
