Roman Column Profiling Machine
Product name : Roman Column Profiling Machine
Item : JNRC-3600
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

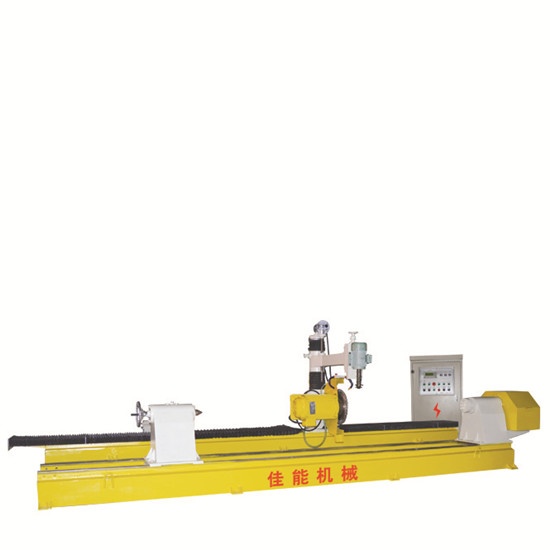

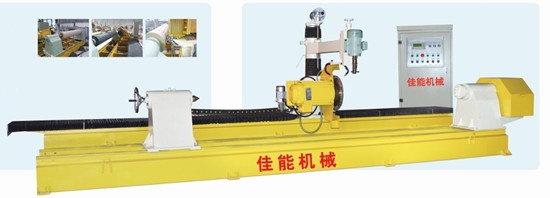

JNRC-3600 Roman Column Profiling Machine

Features:

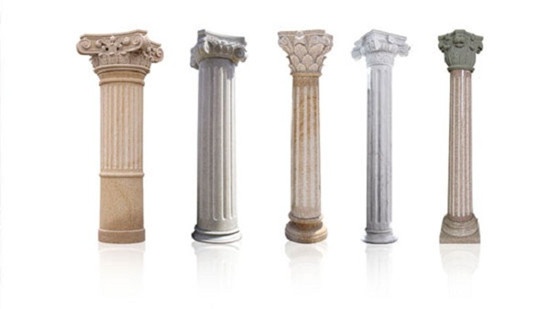

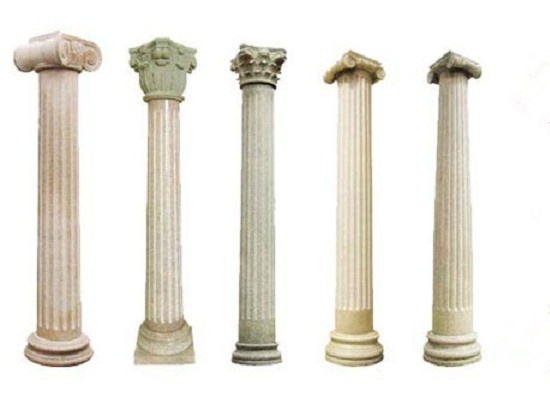

1. Cutting head 90°rotating for precise grooving/fluting of processed columns;

2. One polishing head is equipped for automatic polishing of processed columns;

3. It comes with optical fiber sensing system for precise profiling;

4. More sizes are available upon request.(Custom)



Technical data

Model nu

JNRC-3600

Dimension (L*W*H)

6000*2600*1800mm

Blade diameter

400-600mm

Cutting length

3600mm

Cutting diameter

700mm

Rated voltage

380V/3PH/50Hz

Main motor power

15KW

Total power

23KW

Total weight

5000KG

Water consumption

3m³/h

Packing

Seaworthy packing, wrapped by waterproof plastic films and air bubbles
