Marble Granite Pillar Balustrade Turning Lathe Machine
Product name : Marble Granite Pillar Balustrade Turning Lathe Machine
Item : JNPM-3500
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

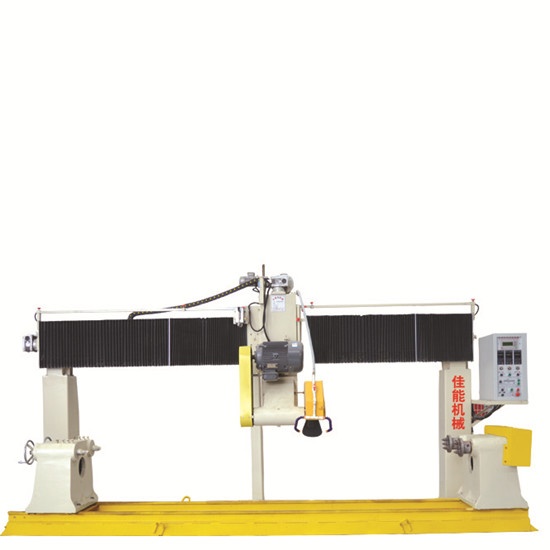

JNPM-3500 Multihead Column Profiling/Copying Machine (Two Heads)

 Features:

1. Optical fiber sensing system makes it for easy and precise operation;

2. Different kinds of wood templates/models are available;

3. Mechanical fastening system fixes workpieces;

4. Cut two workpieces (at most) at the same time;

5. Capable of making balusters, balls, columns, column bases/caps, vases, planters, pots, stools in  different materials (wood, marble, granite, basalt, etc.);

6. Labor-saving and efficient;

7. Recyclable water use;

8. More sizes are available upon request.

Technical data

Model

JNPM-3500

Operation mode

Optical fiber sensing system

Dimension (L*W*H)

5200*1200*2500mm

Max. Cutting length

3500mm

Max. Cutting diameter 850mm*1pcs, 450mm*2pcs

Number of blades

1pc

Max. number of workpieces processed

2pcs

Blade diameter

350-600mm

Operating voltage/frequency

380V 50Hz 3PH

Total power

11 Kw

Total weight

3500Kgs

Water consumption

3m³/h

Packing

Seaworthy packing, wrapped by waterproof plastic films and air bubbles
